• Tank capacity 30L
• Dimension 540x380mm
• Heating time 24 mins
• Heating element input KW (240V) ; 3
• Approximate time taken to heat up to 60’C @Inlet water temperature 25’C. (All connections in 1/2″ BSP Thread.)
• Pressure relief valve (PRV) provides protection against excessive water pressure (Pre-set at 0.8Mpa), The PRV allows tank to be manually drained off to facilitate servicing.
• Adjustable thermostat with over temperature protection is a safety device that automatically and safely cuts off the power in the event the preset temperature is exceeded, thus prevents scalding by hot water. Thermostat conserves electricity by cutting-off power supply to the heater once it has reached the preset temperature.
• Immersion heating element promotes longer, more efficient performance. Efficient heat transferring design reduces sediments built-up in tank.
• Anode rood protects the inner tank frorn corrosion by equalizing aggressive waler reaction and thus extending the lifespan.
• CFC free polyurethane insulation between inner tank and epoxy coated steel jacket provides maximum heat retention and minimize operating after year of service.

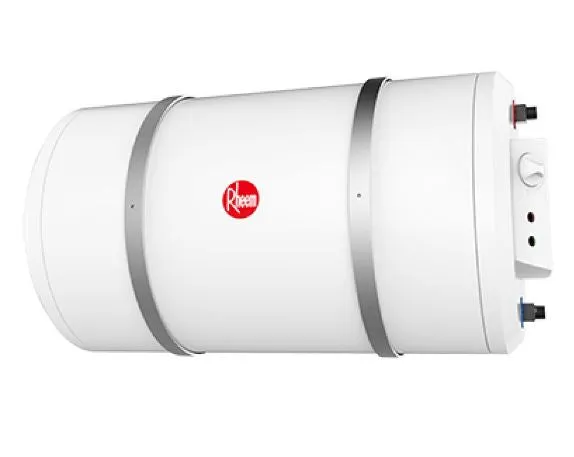

• Installation space saving horizontal layout using universal bracket for both wall or ceiling mounting. All brackets and mounting accessories are included.
• Servicing service panel on the side of the heater facilitates easy access for maintenance and servicing.
• On/off Indicator light shows the cut in/cut out of the heating element.
